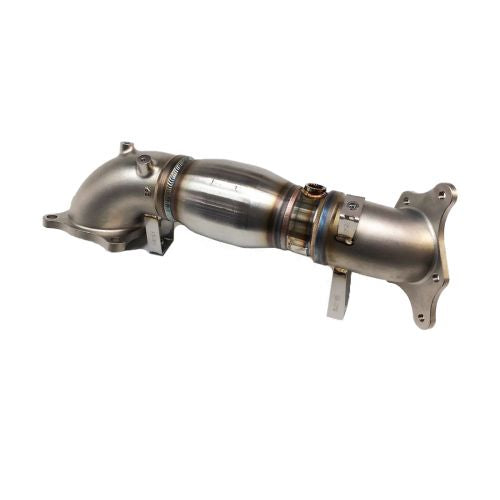

This downpipe was designed using Solidworks 3D modeling and our Creaform 3D laser scanner system for precise measurements and fitment. The transition from turbo to tube and tube to front pipe was optimized using advance flow analysis for maximum flow characteristics.
We are currently working with a catalyst manufacture to develop high flow and more importantly high temperature metallic catalyst core for the catted version. We want to ensure a quality long lasting product.
Specifications
304 Stainless Precision Cast transition section
300 Cell High Temperature High Flow Cat (Catted Version)
All factory heat shield mounting points maintained
Graphite gasket with sealing ring to prevent blowouts
304 Stainless 3.0” outlet
Fully TIG welded
Argon back gassed for pure welds
Includes
Chromoly Exhaust Studs
Locking Nuts
Defouler
Gasket
Vehicle Compatibility
2017-2021 Honda Civic Type R
2023+ Honda Civic Type R
2018-2022 Honda Accord 2.0T
2019+ Acura RDX 2.0T
2021+ Acura TLX 2.0T
2024+ Acura Integra Type S
RV6® will warranty the castings a welding for 24 months.
This product is not available to ship to California residents.
