Hondata K-Pro V4

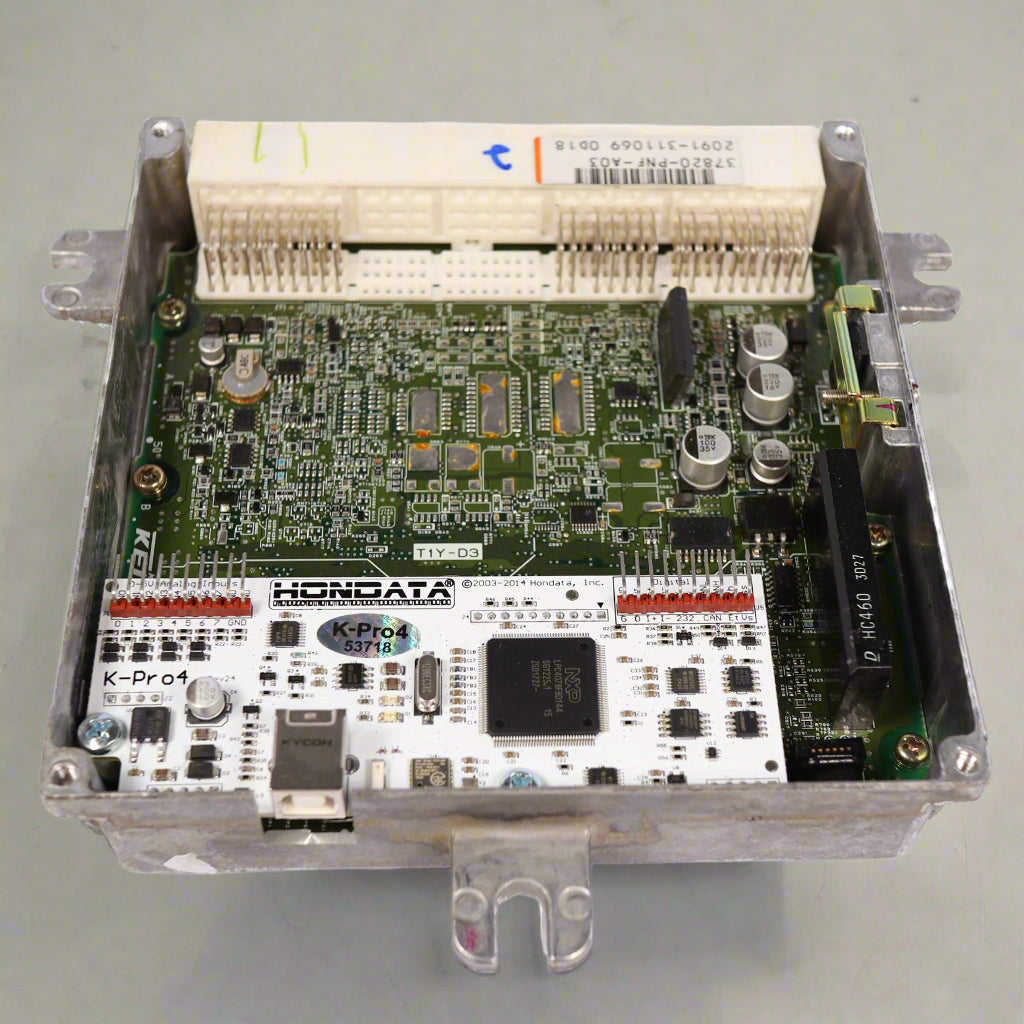

The K-Series Programmable ECU (K-Pro) consists of a hardware modification to any K-Series ECU, plus Windows software which allows you to re-program the ECU and datalog sensors.

-Fits inside the ECU

-Designed and assembled in USA

-USB connection for speed and compatibility

-KManager Windows based software for parameter & table editing, calibration uploading and datalogging.

-Many built in calibrations for common engine combinations

-Built in datalogging to a laptop

-On board datalogging memory (8 MB memory, 10-215 minutes datalogging)

-Adjustment for different sized injectors, with overall fuel trim.

-Configurable for any MAP sensor (to 5 Bar and above)

-TPS based table lookup for ITBs

-Engine protection from lean air fuel ratios, over boost and low oil/fuel pressure.

-Expanded fuel and ignition tables, both in rpm and load, to 60 lbs boost and 11,000 rpm (these are not the upper limits)

-Launch control with anti-lag

-Three multi purpose outputs for nitrous control or similar.

-Supports lambda tracing from the stock wideband o2 or aftermarket wideband.

-PWM output for boost control

-Bluetooth support and Hondata Mobile app.

-Ethanol sensor input for flex fuel capability.

-Alternate speed sensor input.

-Dash output serial & CAN streams.

-Live tuning and auto tune.

-High and low speed 16 x 20 ignition and fuel tables at multiple cam angles for correct VTEC and VTC tuning.

-Injector size fuel trim

-Fuel trim for starting, throttle tip in and individual cylinder trim

-Rev limiter with fuel cut

-Launch control with anti-lag

-Adjustable VTEC window with load and throttle control

-Adjustable idle speed

-MAP sensor type and calibration

-Adjustable boost cut with hot and cold settings

-Closed loop control

-Air temperature compensation

-Fuel and ignition correction based on gear

-Closed loop

-Three general purpose outputs for nitrous control, quad boost control or similar

-On board datalogging trigger conditions
